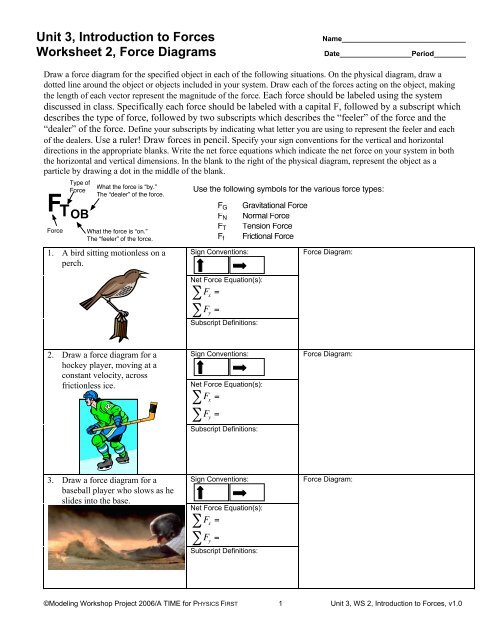

Worksheet 2 Drawing Force Diagrams Draw a force diagram for the specified object in each of the following situations On the physical diagram draw a dotted line around the object or objects
Looking for a no prep way to practice drawing force diagrams This worksheet is a collection of 10 scenarios that allows middle school students to practice The sheet shows students how to draw force arrows on balanced and unbalanced diagrams It includes related questions to check student understanding The
